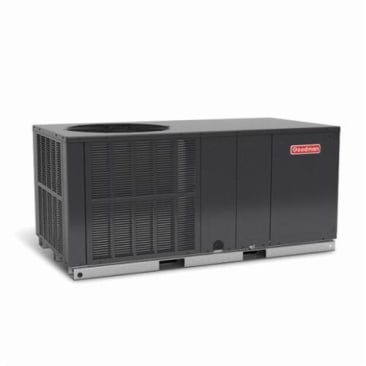

GOODMAN GPH1630H41 Image 1

GOODMAN GPH1630H41 2.5 TON PKGD 16 SEER HP

MFR Part #: GPH1630H41
SKU #: 1219436
Brand: Goodman®
UPC: 978899
Goodman® GPH1630H41 GPH16H Horizontal Packaged Heat Pump, 30000 Btu/hr Nominal, 27600 Btu/hr Heating, 208/230 VAC, 1 ph, 60 Hz, 12.5 EER, 8 HSPF
10 Years Limited
AHRI Certified | cETLus Listed

Goodman® Packaged Heat Pump, Horizontal, Series: GPH16H, 30000 Btu/hr Nominal, 27600 Btu/hr Heating, 208/230 VAC, 1 ph, 60 Hz Power Source, 1050 cfm Evaporator, 12.5 EER, 16 SEER, 8 HSPF, 3.8 COP, Scroll Compressor, R-410A Refrigerant, 1/2 hp Evaporator and 1/6 hp Condenser Motor, 1050 rpm Evaporator and 815 rpm Condenser, 35 A Fuse, 76 dBA Sound Level, Galvanized Steel, 66 in W x 34 in D x 30 in H Dimensions

The best packaged system is the kind you don't have to worry about. It comes on the moment you need it and then runs quietly and efficiently all year long. Goodman packaged systems are loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy- efficient trend that's here to stay for many years. Our complete line of packaged systems are priced to help add comfort to your budget from a local independent Goodman dealer. And that's only the beginning. We want you to smile every time you open your utility bill, so we design energy-efficient technology into our units.

Product Details

Goodman® Packaged Heat Pump, Horizontal, Series: GPH16H, 30000 Btu/hr Nominal, 27600 Btu/hr Heating, 208/230 VAC, 1 ph, 60 Hz Power Source, 1050 cfm Evaporator, 12.5 EER, 16 SEER, 8 HSPF, 3.8 COP, Scroll Compressor, R-410A Refrigerant, 1/2 hp Evaporator and 1/6 hp Condenser Motor, 1050 rpm Evaporator and 815 rpm Condenser, 35 A Fuse, 76 dBA Sound Level, Galvanized Steel, 66 in W x 34 in D x 30 in H Dimensions

The best packaged system is the kind you don't have to worry about. It comes on the moment you need it and then runs quietly and efficiently all year long. Goodman packaged systems are loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy- efficient trend that's here to stay for many years. Our complete line of packaged systems are priced to help add comfort to your budget from a local independent Goodman dealer. And that's only the beginning. We want you to smile every time you open your utility bill, so we design energy-efficient technology into our units.

Attributes

Compressor Type: Scroll
COP Rating: 3.8
Dimensions: 66 in W x 34 in D x 30 in H
EER Rating: 12.5
Flow Rate: 1050 cfm Evaporator
Fuse Size: 35 A
Heating Capacity: 27600 Btu/hr
HSPF Rating: 8
Material: Galvanized Steel
Motor HP: 1/2 hp Evaporator and 1/6 hp Condenser
Motor RPM: 1050 rpm Evaporator and 815 rpm Condenser
Nominal Capacity: 30000 Btu/hr
Power Source: 208/230 VAC, 1 ph, 60 Hz
Refrigerant Type: R-410A
SEER Rating: 16
Series: GPH16H
Sound Level: 76 dBA
Type: Horizontal

Features

  • Energy-efficient compressor
  • All aluminum evaporator coil
  • Multi speed induced blower motor
  • Totally enclosed, permanently lubricated condenser fan motor
  • Refrigeration grade premium copper tubing and aluminum fin condenser coil configuration
  • Self contained packaged units
  • Heavy gauge galvanized steel cabinet
  • 3.8 FLA evaporator
  • 23 A minimum circuit ampicity
