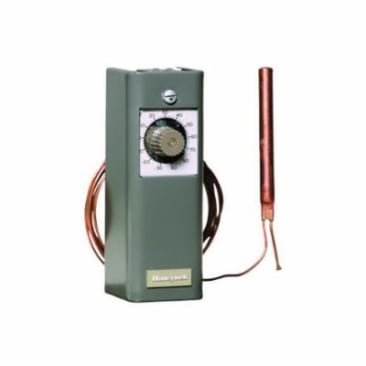

HONEYWELL T6031A1219 REFRIGERATION CONTROL
MFR Part #: T6031A1219/U
SKU #: 0862181
Brand: Honeywell
UPC: 085267088909
Honeywell T6031A1219/U Refrigeration Controller, -35 to 30 deg C Control, SPDT Single Switch, 120/240 VAC, Import
Ducts, Tanks, Freezers, Coolers, Display Cases and Defrost Termination
CSA LR95329-1 | UL SA481 Volume 3 Section 5 Guide SPFY
Product Details
Attributes
Features
Resources
Honeywell Refrigeration Controller, Series: T6031A, -35 to 30 deg C Control Range, SPDT Switch, Single, 8 ft Capillary Length, 120/240 VAC, 5-5/8 in H x 2 in W x 2-1/8 in D, Import
Capillary Length:8 ft
Control Range:-35 to 30 deg C
Country Of Origin:Mexico
Dimensions:5-5/8 in H x 2 in W x 2-1/8 in D
Domestic/Import:Import
Series:T6031A
Switch Action:Single
Switch Type:SPDT
Voltage Rating:120/240 V AC
- Liquid-filled copper elements provide rapid sensing to control the compressor system
- Control temperature in a duct, tank, freezer or cooler
- Controller element can be directly immersed in the controlled medium
- Adjustable control setpoint
- Ambient temperature compensation provides good temperature control
- Provide limit or temperature control in refrigerated areas where remote mounting of sensing element is required
- 125 deg F maximum operating temperature
- 3/8 in Dia x 3 in L copper bulb sensor element
- 1.9 to 8.9 deg C differential
- Contact ratings: 8 A Full Load, 48 A Load Rotor at 120 VAC, 5.1 A Full Load, 30.6 A Load Rotor at 240 VAC
- Provides control of cooled or refrigerated space
Product Details
Honeywell Refrigeration Controller, Series: T6031A, -35 to 30 deg C Control Range, SPDT Switch, Single, 8 ft Capillary Length, 120/240 VAC, 5-5/8 in H x 2 in W x 2-1/8 in D, Import
Attributes
Capillary Length: 8 ft
Control Range: -35 to 30 deg C
Country Of Origin: Mexico
Dimensions: 5-5/8 in H x 2 in W x 2-1/8 in D
Domestic/Import: Import
Series: T6031A
Switch Action: Single
Switch Type: SPDT
Voltage Rating: 120/240 V AC
Features
- Liquid-filled copper elements provide rapid sensing to control the compressor system
- Control temperature in a duct, tank, freezer or cooler
- Controller element can be directly immersed in the controlled medium
- Adjustable control setpoint
- Ambient temperature compensation provides good temperature control
- Provide limit or temperature control in refrigerated areas where remote mounting of sensing element is required
- 125 deg F maximum operating temperature
- 3/8 in Dia x 3 in L copper bulb sensor element
- 1.9 to 8.9 deg C differential
- Contact ratings: 8 A Full Load, 48 A Load Rotor at 120 VAC, 5.1 A Full Load, 30.6 A Load Rotor at 240 VAC
- Provides control of cooled or refrigerated space
