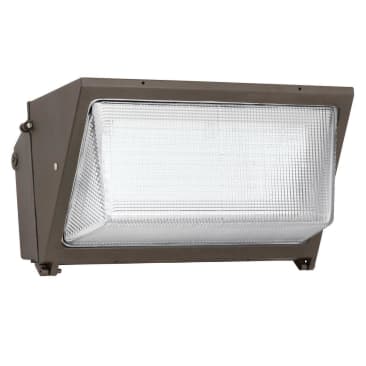

HUBBELL WGH-225L-4K-U-L Image 1

HUBBELL WGH-225L-4K-U-L LED REFRACTOR WALL PACK BRZ CAST AL

MFR Part #: WGH-225L-4K-U-L
SKU #: 1116136
Brand: Hubbell® Outdoor Lighting
UPC: 785988031146
EXO WGH-225L-4K-U-L Large Wallpack, (225) LED Lamp, 102 W Fixture, 120 to 277 VAC, Dark Bronze Powder Painted Housing
5 Years
This product may be subject to ecological fees.
Safety, Security, Use on Factories, Warehouse, Self Storage, Commercial Building and Dusk-to-Dawn Applications
RoHS Compliant | UL Listed | CSA Certified | DLC Listed | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EXO Wallpack, Large, Series: WGH, 120 to 277 VAC, 102 W Fixture, 0.39/0.85 A, LED Lamp, 225 Lamps, 116 Lumens/W, 4000 K Color, 80 CRI, Borosilicate Glass Lens, 11838 Lumens, IP66, Surface Mount, Die Cast Aluminum Housing, Dark Bronze Powder Painted Housing, 9 in H x 17 in W x 13 in D

Borosilicate glass refractor wallpacks provide safety and security lighting. Wall mount at heights from 15 to 25 ft. Refractor spreads light and softens lamp image. Available in energy efficient LED and 84 to 400 W traditional sources.

Product Details

EXO Wallpack, Large, Series: WGH, 120 to 277 VAC, 102 W Fixture, 0.39/0.85 A, LED Lamp, 225 Lamps, 116 Lumens/W, 4000 K Color, 80 CRI, Borosilicate Glass Lens, 11838 Lumens, IP66, Surface Mount, Die Cast Aluminum Housing, Dark Bronze Powder Painted Housing, 9 in H x 17 in W x 13 in D

Borosilicate glass refractor wallpacks provide safety and security lighting. Wall mount at heights from 15 to 25 ft. Refractor spreads light and softens lamp image. Available in energy efficient LED and 84 to 400 W traditional sources.

Attributes

Color Temperature: 4000 K
Country Of Origin: China
Fixture Wattage: 102 W
Lumens: 11838 Lumens
Mounting Type: Surface
Amperage Rating: 0.39/0.85 A
Color Rendering Index (CRI): 80
Dimensions: 9 in H x 17 in W x 13 in D
Enclosure Type: IP66
Housing Finish: Dark Bronze Powder Painted
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lens Type: Borosilicate Glass
Light Output: 116 Lumens/W
Number of Lamps: 225
Series: WGH
Type: Large
Voltage Rating: 120 to 277 VAC

Features

  • LED units replace up to 400 W HID
  • Cast aluminum housing with 1/2 in conduit entries, button photocontrol can be field installed
  • Borosilicate glass refractor softens lamp image and provides uniform distribution - 4 times spacing to mount height
  • Cast aluminum frame holds lens, hinges to side on housing and seals with two stainless steel screws

Resources

Specification Sheet
