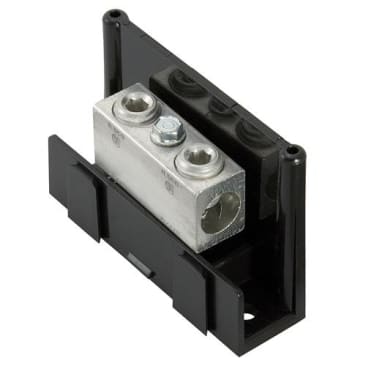

ILSCO PDA-11-2/0-1 POWER DISTRIBUTION BLOCK
MFR Part #: PDA-11-2/0-1
SKU #: 1011286
Brand: ILSCO®
UPC: 78366971134
ILSCO® ClearChoice® PDA-11-2/0-1 Type PDA Dual Rated Pole Adder Power Distribution Block, 600 VAC, 175 A, 14 to 2/0 AWG Wire, Aluminum Alloy
Tap Connector Applications
CSA File No. LR29601 | UL 1953 File No. E84782 | ECCN EAR99 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product Details
Attributes
Features
ILSCO® ClearChoice® Power Distribution Block, Type PDA Dual Rated Pole Adder, 600 VAC, 175 A, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black
Amperage Rating:
175 A
Country Of Origin:
Mexico
Color:
Black
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Primary Connections/Pole:
1
Secondary Connection/Pole:
1
Short Circuit Current Rating:
10 kA
Type:
Type PDA Dual Rated Pole Adder
Voltage Rating:
600 VAC
Wire Size:
14 to 2/0 AWG
- Modular design-simplifies stocking, combines any number of blocks with multiple conductor ranges into the specific configuration required for the job
- Easy to assemble unique locking feature allows individual blocks to be combined quickly without special tools
- Electro tin plated provides low contact resistance
- Lexan insulating base - provides a high degree of impact resistance with superior insulating qualities
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- PDA are added to PDC to obtain a multi-pole block
- 90 deg C temperature rating
- UL assigned short circuit current rating 10000 A
- 3/16 in hex primary, hex secondary
- (1) box lug primary, (1) box lug secondary
- 14 to 2/0 AWG primary and secondary wire
- Modular design for ease of assemble
- UL assigned short circuit current rating
- Lexan® insulating base
Product Details
ILSCO® ClearChoice® Power Distribution Block, Type PDA Dual Rated Pole Adder, 600 VAC, 175 A, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black
Attributes
Amperage Rating: 175 A
Country Of Origin: Mexico
Color: Black
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Primary Connections/Pole: 1
Secondary Connection/Pole: 1
Short Circuit Current Rating: 10 kA
Type: Type PDA Dual Rated Pole Adder
Voltage Rating: 600 VAC
Wire Size: 14 to 2/0 AWG
Features
- Modular design-simplifies stocking, combines any number of blocks with multiple conductor ranges into the specific configuration required for the job
- Easy to assemble unique locking feature allows individual blocks to be combined quickly without special tools
- Electro tin plated provides low contact resistance
- Lexan insulating base - provides a high degree of impact resistance with superior insulating qualities
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- PDA are added to PDC to obtain a multi-pole block
- 90 deg C temperature rating
- UL assigned short circuit current rating 10000 A
- 3/16 in hex primary, hex secondary
- (1) box lug primary, (1) box lug secondary
- 14 to 2/0 AWG primary and secondary wire
- Modular design for ease of assemble
- UL assigned short circuit current rating
- Lexan® insulating base
