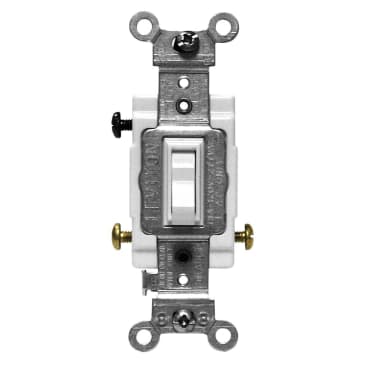

LEVITON 1103-CW 15A 120/277V 3-WAY FRAMED SIDE WIRED TOGGLE SWITCH WHITE
MFR Part #:Â 1103-CW
SKU #:Â 0774303
Brand: Leviton®
UPC:Â 068679115326
Leviton® 1103-CW 3-Way Framed AC Quiet Toggle Switch, 120/277 VAC, 15 A
10 Years Limited
Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions
CSA C22.2 No. 111 File No. 152105 | NOM 057 | UL Fed Spec WS896E File No. E7458 | UL 20 | UL94-V2 Flammability Rated
Product Details
Attributes
Features
Resources
Leviton® AC Quiet Toggle Switch, 3-Way Framed, 120/277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC Contact, Cam Actuator, NEMA WD-1/WD-6 Enclosure, Wall Plate Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.31 in W x 0.92 in D Dimensions
Amperage Rating:
15 A
Country Of Origin:
Mexico
Voltage Rating:
120/277 VAC
Actuator:
Cam
Color:
White
Contact Rating:
1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC
Dimensions:
4.06 in H x 1.31 in W x 0.92 in D
Enclosure:
NEMA WD-1/WD-6
Environmental Conditions:
-40 to 65 deg C Operating Temperature
Material:
Thermoplastic
Mounting:
Wall Plate
Operating Cycles:
50000 Cycles
Terminal Type:
Side Wire
Type:
3-Way Framed
- Large head triple-drive combination screws (standard, phillips and robertson) for fast wiring installation
- Heavy-gauge, rust-resistant steel mounting strap
- Accepts no 14 to 12 AWG copper or copper clad wire
- Convenient break-off plaster ears for best alignment
- Large switch contacts for maximum conductivity
Product Details
Leviton® AC Quiet Toggle Switch, 3-Way Framed, 120/277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC Contact, Cam Actuator, NEMA WD-1/WD-6 Enclosure, Wall Plate Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.31 in W x 0.92 in D Dimensions
Attributes
Amperage Rating:Â 15 A
Country Of Origin:Â Mexico
Voltage Rating:Â 120/277 VAC
Actuator:Â Cam
Color:Â White
Contact Rating:Â 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC
Dimensions:Â 4.06 in H x 1.31 in W x 0.92 in D
Enclosure:Â NEMA WD-1/WD-6
Environmental Conditions:Â -40 to 65 deg C Operating Temperature
Material:Â Thermoplastic
Mounting:Â Wall Plate
Operating Cycles:Â 50000 Cycles
Terminal Type:Â Side Wire
Type:Â 3-Way Framed
Features
- Large head triple-drive combination screws (standard, phillips and robertson) for fast wiring installation
- Heavy-gauge, rust-resistant steel mounting strap
- Accepts no 14 to 12 AWG copper or copper clad wire
- Convenient break-off plaster ears for best alignment
- Large switch contacts for maximum conductivity
