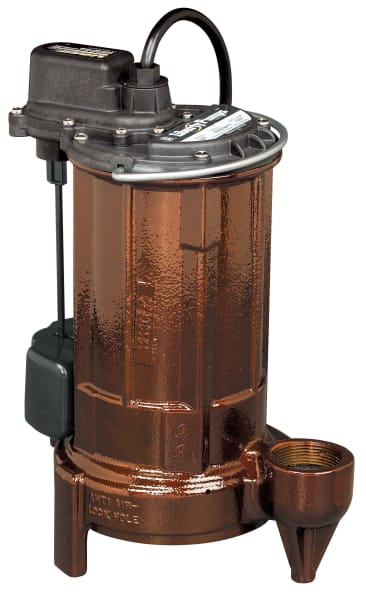

LIBERTY 297-2 SUB SUMP PUMP 3/4HP 115V 25FT CORD VMF
MFR Part #: 297-2
SKU #: 1154444
Brand: Liberty Pumps®
UPC: 671812121056
Liberty Pumps® 297-2 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 1 Phase , 3/4 hp, Cast Iron
3 Years
cCSAus Certified | SSPMA Certified | PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Product Details
Attributes
Features
Resources
Liberty Pumps®, 297-2, Series: 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 48 ft Maximum Head, 3/4 hp, 115 VAC, 10.4 A Full Load, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Vortex Impeller, 248 deg F Thermal Overload, Ball Bearing, Cast Iron, 10 in W x 13 in H Dimensions
Country Of Origin:
US
Flow Rate:
77 gpm
Horsepower:
3/4 hp
Voltage Rating:
115 VAC
Amperage Rating:
10.4 A Full Load
Bearing Type:
Ball
Cord Type:
SJTW 25 ft
Dimensions:
10 in W x 13 in H
Frequency Rating:
60 Hz
Impeller Type:
Vortex
Material:
Cast Iron
Maximum Head:
48 ft
Motor Speed:
3450 rpm
Outlet Size:
1-1/2 in
Phase:
1
Series:
290
Temperature Rating:
248 deg F Thermal Overload
- Liberty Pumps®'s unique, one-piece unit body casting
- Permanently lubricated upper and lower ball bearings
- Oil filled, hermetically sealed motor with thermal overload protection
- Stainless steel, removable bottom screen
- VMF - vertical magnetic float for smaller pits
- 3/4 in solid handling
- 140 deg F fluid temperature
- Quick-connect power cord
Product Details
Liberty Pumps®, 297-2, Series: 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 48 ft Maximum Head, 3/4 hp, 115 VAC, 10.4 A Full Load, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Vortex Impeller, 248 deg F Thermal Overload, Ball Bearing, Cast Iron, 10 in W x 13 in H Dimensions
Attributes
Country Of Origin: US
Flow Rate: 77 gpm
Horsepower: 3/4 hp
Voltage Rating: 115 VAC
Amperage Rating: 10.4 A Full Load
Bearing Type: Ball
Cord Type: SJTW 25 ft
Dimensions: 10 in W x 13 in H
Frequency Rating: 60 Hz
Impeller Type: Vortex
Material: Cast Iron
Maximum Head: 48 ft
Motor Speed: 3450 rpm
Outlet Size: 1-1/2 in
Phase: 1
Series: 290
Temperature Rating: 248 deg F Thermal Overload
Features
- Liberty Pumps®'s unique, one-piece unit body casting
- Permanently lubricated upper and lower ball bearings
- Oil filled, hermetically sealed motor with thermal overload protection
- Stainless steel, removable bottom screen
- VMF - vertical magnetic float for smaller pits
- 3/4 in solid handling
- 140 deg F fluid temperature
- Quick-connect power cord
