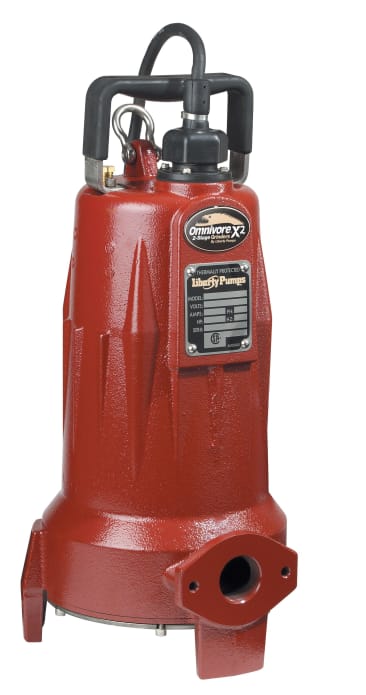

LIBERTY LSGX205M GRINDER PUMP 2STG 2HP 25FT CORD 575V
Product Details
Attributes
Features
Resources
Liberty Pumps®, LSGX205M, 2-Stage High-Head, Series: LSGX200, 39 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/4 in NPT Outlet, 185 ft Maximum Head, 2 hp, 575 VAC, 4.9 A Full Load/31 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, SEOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, 275 deg F Thermal Overload, Upper Radial/Lower Thrust Bearing, Fiberglass
Liberty's 2-stage LSGX series Omnivore® grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSGX features a superior cutting system made of hardened 440 stainless steel - Rockwell C 58, for shearing solids into small particles prior to being passed to the discharge. The 2-stage design provides high pressure with maximum head capabilities to 185 ft. This performance allows installation of a centrifugal designed grinder where only progressive cavity style designs were previously used. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring high pressure sewage pumping. Whether you're replacing an existing grinder pump or customizing a new sewage system, the Omnivore® can be packaged within any number of tank sizes.
- One-piece unit body casting
- Quick connect 25 ft power cord
- The LSGX Omnivore® two-stage grinder pump features patented V-Slice® cutter technology
- The hardened stainless steel cutting system provides in excess of 370000 cuts/min and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
- A unique open volute design eliminates the cutwater improving solids flow and reducing potential jamming of material in the volute
- Capacitors are integral to the pump, eliminating the need for an expensive control panel
Product Details
Liberty Pumps®, LSGX205M, 2-Stage High-Head, Series: LSGX200, 39 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/4 in NPT Outlet, 185 ft Maximum Head, 2 hp, 575 VAC, 4.9 A Full Load/31 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, SEOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, 275 deg F Thermal Overload, Upper Radial/Lower Thrust Bearing, Fiberglass
Liberty's 2-stage LSGX series Omnivore® grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSGX features a superior cutting system made of hardened 440 stainless steel - Rockwell C 58, for shearing solids into small particles prior to being passed to the discharge. The 2-stage design provides high pressure with maximum head capabilities to 185 ft. This performance allows installation of a centrifugal designed grinder where only progressive cavity style designs were previously used. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring high pressure sewage pumping. Whether you're replacing an existing grinder pump or customizing a new sewage system, the Omnivore® can be packaged within any number of tank sizes.
Attributes
Features
- One-piece unit body casting
- Quick connect 25 ft power cord
- The LSGX Omnivore® two-stage grinder pump features patented V-Slice® cutter technology
- The hardened stainless steel cutting system provides in excess of 370000 cuts/min and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
- A unique open volute design eliminates the cutwater improving solids flow and reducing potential jamming of material in the volute
- Capacitors are integral to the pump, eliminating the need for an expensive control panel
