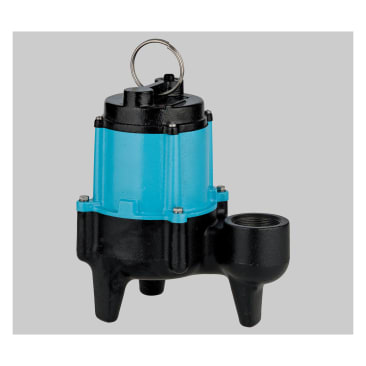

LITTLE GIANT 511344 Image 1

LITTLE GIANT 511344 10SN--CIM

MFR Part #: 511344
SKU #: 1153609
Brand: Little Giant®
UPC: 010121140578
Little Giant® 511344 10SN Sewage Pump, 1/2 hp, 115 V AC, 3 in FNPT Outlet, 9.5 A, 1 ph
3 Years
Cast Iron Permanent Split Capacitor Motor
Dewatering, Sewage and Effluent Wastewater Transfer
cCSAus Certified

Little Giant® Sewage Pump, Series: 10SN, 120 gpm Flow Rate, 3 in FNPT Outlet, 25 ft Maximum Head, 1/2 hp, 115 V AC, 9.5 A, 60 Hz Frequency, 1 ph, 10.9 psi Maximum, SJTOW 20 ft Cord, Thermoplastic Elastomer Non-Clogging Impeller, 140 deg F, Upper Sintered Sleeve/Lower Ball Bearing, 11.64 in L x 6.8 in W x 11 in H Dimensions, Domestic/Import: Import

Product Details

Little Giant® Sewage Pump, Series: 10SN, 120 gpm Flow Rate, 3 in FNPT Outlet, 25 ft Maximum Head, 1/2 hp, 115 V AC, 9.5 A, 60 Hz Frequency, 1 ph, 10.9 psi Maximum, SJTOW 20 ft Cord, Thermoplastic Elastomer Non-Clogging Impeller, 140 deg F, Upper Sintered Sleeve/Lower Ball Bearing, 11.64 in L x 6.8 in W x 11 in H Dimensions, Domestic/Import: Import

Attributes

Horsepower: 1/2 hp
Maximum Head: 25 ft
Outlet Size: 3 in FNPT
Voltage Rating: 115 V AC
Amperage Rating: 9.5 A
Bearing Type: Upper Sintered Sleeve/Lower Ball
Cord Type: SJTOW 20 ft
Dimensions: 11.64 in L x 6.8 in W x 11 in H
Domestic/Import: Import
Flow Rate: 120 gpm
Frequency Rating: 60 Hz
Impeller Type: Thermoplastic Elastomer Non-Clogging
Maximum Pressure: 10.9 psi
Phase: 1
Series: 10SN
Temperature Rating: 140 deg F

Features

  • Energy-saving low amp draw
  • Designed for continuous operation
  • Handles solids up to 2 in Dia
  • Manual operation
