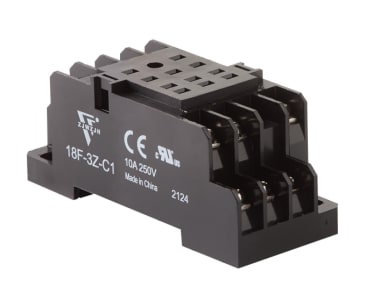

MACROMATIC 18F-3Z-C1 BLADE STYLE RELAY
MFR Part #: 18F-3Z-C1
SKU #: 1286170
Brand: MACROMATIC
UPC: 400051757845
MACROMATIC 18F-3Z-C1 General Purpose Blade Style Relay 3P Flat Socket
UL Recognized Component (cURus, File #E238167) | CE Marked
Product Details
Attributes
Features
Resources
MACROMATIC 18F-3Z-C1 General Purpose Blade Style Relay 3P Flat Socket, 10 A at 250 V Electrical Rating, 11-Blades Terminal Type, Operating Temp of -25 to 85 deg C, Storage Temp of -40 to 85 deg C, Screw or DIN-Rail Mounting, 0.1 lb, 16-30 AWG
Weight:.1 lb
- 10A at 250V
- Wiring: 1 or 2, solid or stranded, 16-30 AWG
- DIN-Rail or Screw Mounting
- Termination: Plus-minus screw (M3x8) with pressure plate. Tighten to recommended torque of 5.2 in-lb (maximum 6.9 in-lb)
Product Details
MACROMATIC 18F-3Z-C1 General Purpose Blade Style Relay 3P Flat Socket, 10 A at 250 V Electrical Rating, 11-Blades Terminal Type, Operating Temp of -25 to 85 deg C, Storage Temp of -40 to 85 deg C, Screw or DIN-Rail Mounting, 0.1 lb, 16-30 AWG
Attributes
Weight: .1 lb
Features
- 10A at 250V
- Wiring: 1 or 2, solid or stranded, 16-30 AWG
- DIN-Rail or Screw Mounting
- Termination: Plus-minus screw (M3x8) with pressure plate. Tighten to recommended torque of 5.2 in-lb (maximum 6.9 in-lb)
