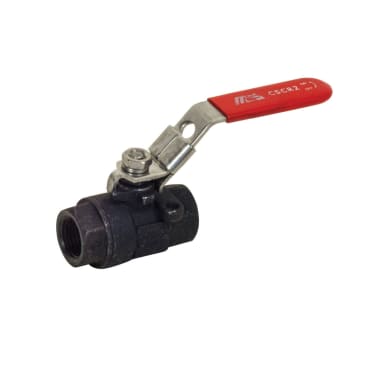

MAS CSCR-2-1/4 Image 1

MAS 014-15009 1/4 IP CARB STEEL BALL VLV CSCR-2

MFR Part #: CSCR-2-1/4
SKU #: 0547620
Brand: MAS™
UPC: 620830200199
MAS™ C Series CSCR-2-1/4 Ball Valve, 1/4 in, NPT, Carbon Steel, 2000 psi
3 Year Limited
ANSI B1.20.1 | NACE MR0103/MR0175

MAS™ Ball Valve, C Series, 1/4 in Nominal, NPT Connection, L Port, 2000 psi, Gas, Oil, Water Media, 2.303 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, 0.433 in Opening, Locking Lever Handle Operator, 8 Cv Flow Coefficient (Cv), Material Standard: ASTM A108, ASTM A216 Grade WCB, ASTM A276, ASTM A351 Grade CF8M, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Stem, PTFE Packing, 304 Stainless Steel Handle, Stainless Steel Ball, PTFE/RPTFE/Vinyl Softgoods, Lead-Free

Product Details

MAS™ Ball Valve, C Series, 1/4 in Nominal, NPT Connection, L Port, 2000 psi, Gas, Oil, Water Media, 2.303 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, 0.433 in Opening, Locking Lever Handle Operator, 8 Cv Flow Coefficient (Cv), Material Standard: ASTM A108, ASTM A216 Grade WCB, ASTM A276, ASTM A351 Grade CF8M, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Stem, PTFE Packing, 304 Stainless Steel Handle, Stainless Steel Ball, PTFE/RPTFE/Vinyl Softgoods, Lead-Free

Attributes

Connection Type: NPT
Inlet to Outlet Length: 2.303 in
Nominal Size: 1/4 in
Operator Type: Locking Lever Handle
Pressure Rating: 2000 psi
Ball Material: Stainless Steel
Body Material: Carbon Steel
Flow Coefficient (Cv): 8 Cv
Handle Material: 304 Stainless Steel
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM A108, ASTM A216 Grade WCB, ASTM A276, ASTM A351 Grade CF8M
Media: Gas, Oil, Water
Opening Size: .433 in
Packing Material: PTFE
Port Type: L
Seat Material: RPTFE
Series: C Series
Softgoods Material: PTFE/RPTFE/Vinyl
Stem Material: 316 Stainless Steel
Top to Inlet Center: 2.13 in

Features

  • Blowout-proof stem design
  • Adjustable packing gland
  • Actuator-mounting pad
  • All mounting pads are not tapped, but have reserve holes cast in

Resources

Specification Sheet
