RED-WHITE 004-14458 3/8 IP 3-WAY L-PORT BALL VLV 5045
MFR Part #: 5045 3/8
SKU #: 0547041
Brand: RWV®
UPC: 620689545038

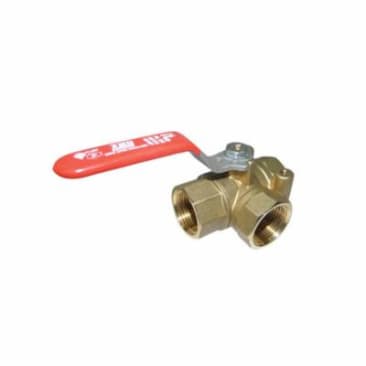

RWV® 5045 3/8 3-Way Ball Valve With Handle, 3/8 in Nominal, Thread End Style, Forged Brass Body, Regular L Port, NBR Softgoods
B283 C37700 Body/Ball | A36 Dacroment Handle and B124 C37700 Stem
Product Details
Attributes
Features
Resources
RWV® Ball Valve, 3-Way, Series: 5045, 3/8 in Nominal, Thread End Style, 400 lb WOG/125 lb WSP Pressure, 15 to 160 deg F, Regular L Port, Chrome Plated Brass Ball, Forged Brass Body, Brass Stem and PTFE Seat Trim, NBR Softgoods
Connection Type:
Thread
Nominal Size:
3/8 in
Pressure Rating:
400 lb WOG/125 lb WSP
Ball Material:
Chrome Plated Brass
Body Material:
Forged Brass
Port Type:
Regular L
Series:
5045
Softgoods Material:
NBR
Temperature Rating:
15 to 160 deg F
Trim Material:
Brass Stem and PTFE Seat
Type:
3-Way
- Blow-out proof stem
- Mounting pad
- NBR O-ring/packing
Product Details
RWV® Ball Valve, 3-Way, Series: 5045, 3/8 in Nominal, Thread End Style, 400 lb WOG/125 lb WSP Pressure, 15 to 160 deg F, Regular L Port, Chrome Plated Brass Ball, Forged Brass Body, Brass Stem and PTFE Seat Trim, NBR Softgoods
Attributes
Connection Type: Thread
Nominal Size: 3/8 in
Pressure Rating: 400 lb WOG/125 lb WSP
Ball Material: Chrome Plated Brass
Body Material: Forged Brass
Port Type: Regular L
Series: 5045
Softgoods Material: NBR
Temperature Rating: 15 to 160 deg F
Trim Material: Brass Stem and PTFE Seat
Type: 3-Way
Features
- Blow-out proof stem
- Mounting pad
- NBR O-ring/packing
