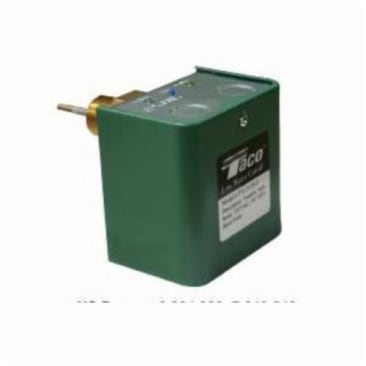

TACO LTA1203S-2 120VAC LWCO AUTO RESET PROBE WITH TEST BUTTON
Product Details
Attributes
Features
Resources
Taco®, LTA1203S-2, Low Water Cut-Off, Series: LT Series, 120 VAC, 32 to 150 deg F, 250 psi Pressure, Automatic Reset, NPT Connection, 3/4 in Thread, 2.8 VA Power, 3 in Length, 3.66 in Width, 5.53 in Height
The Low Water Cutoff (LTA-2) is a microprocessor based low water cutoff for detecting the presence to water in a boiler. The LTA-2 uses advanced signal processing to identify when the probe signal levels have decreased due to possible fouling. These advanced technologies permit extended operation for probe impedance up to 40K Ohms. The LTA-2 functions longer without requiring probe cleaning, and it functions normally under non-ideal installation conditions. The LTA-2 is designed for use with hot water boilers and hot water heating boilers. (See each boiler manufacturers' specifications for recommended minimum safe water levels.) During a low water condition, the Status LED will illuminate RED. Under normal conditions, it will illuminate GREEN. See Status LED States table for details.
- Probe sensitivity - 20 kOhm, extended operation to 40 kOhm
- 7.5 A full load
- 43.2 A locked rotor
- 125 VA pilot rating
- 32 to 150 deg F ambient temperature
- Enclosure rating - NEMA 1 for indoor use only
- Automatic reset when water level returns to safe level
- Integrated test switch for testing safety shutdown
- External LEDs and simplified wiring for easy installation and testing
- Worry Free Operation
- Automatic or manual reset mode
- Does not require periodic shutdown of the boiler to determine water level
- Probe Style Low Water Cutoff
- LED Verification
- Seamless Integration
- LED lights indicate low water condition
- Standard on-board NEMA 1 or remote NEMA 4 probe 1/2 in or 3/4 in NPT connection
- 0 seconds 15 seconds delay on make timer
- 250 deg F max probe temp
- Patented adjustable probe sensitivity
Product Details
Taco®, LTA1203S-2, Low Water Cut-Off, Series: LT Series, 120 VAC, 32 to 150 deg F, 250 psi Pressure, Automatic Reset, NPT Connection, 3/4 in Thread, 2.8 VA Power, 3 in Length, 3.66 in Width, 5.53 in Height
The Low Water Cutoff (LTA-2) is a microprocessor based low water cutoff for detecting the presence to water in a boiler. The LTA-2 uses advanced signal processing to identify when the probe signal levels have decreased due to possible fouling. These advanced technologies permit extended operation for probe impedance up to 40K Ohms. The LTA-2 functions longer without requiring probe cleaning, and it functions normally under non-ideal installation conditions. The LTA-2 is designed for use with hot water boilers and hot water heating boilers. (See each boiler manufacturers' specifications for recommended minimum safe water levels.) During a low water condition, the Status LED will illuminate RED. Under normal conditions, it will illuminate GREEN. See Status LED States table for details.
Attributes
Features
- Probe sensitivity - 20 kOhm, extended operation to 40 kOhm
- 7.5 A full load
- 43.2 A locked rotor
- 125 VA pilot rating
- 32 to 150 deg F ambient temperature
- Enclosure rating - NEMA 1 for indoor use only
- Automatic reset when water level returns to safe level
- Integrated test switch for testing safety shutdown
- External LEDs and simplified wiring for easy installation and testing
- Worry Free Operation
- Automatic or manual reset mode
- Does not require periodic shutdown of the boiler to determine water level
- Probe Style Low Water Cutoff
- LED Verification
- Seamless Integration
- LED lights indicate low water condition
- Standard on-board NEMA 1 or remote NEMA 4 probe 1/2 in or 3/4 in NPT connection
- 0 seconds 15 seconds delay on make timer
- 250 deg F max probe temp
- Patented adjustable probe sensitivity
