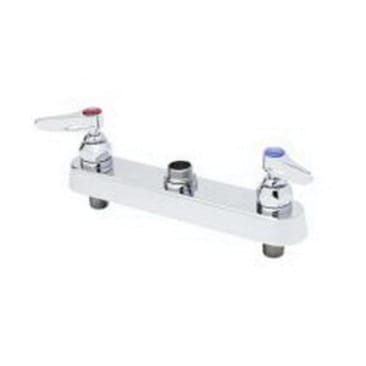

T&S B-1120-LN 8CC LEVER HANDLE FAUCET LESS SPOUT
MFR Part #:Â B-1120-LN
SKU #:Â 1001375
Brand:Â T & S
UPC:Â 671262009744?
T & S B-1120-LN Workboard Mixing Manual Faucet, Polished Chrome, 8 in Center, 8.78 gpm
1 Year Limited
ANSI/ICC A117.1 (ADA) | ASME A112.18.1/CSA B125.1 | City of Los Angeles | Commonwealth of Massachusetts BAA/ARRA Certification | NSF 61-Section 9 and NSF/ANSI 372
Product Details
Attributes
Features
Resources
T & S Workboard Mixing Manual Faucet, 8.78 gpm Flow Rate, 8 in Center Distance, Tubular Spout, Lever Handle, 1/2 in Connection, MNPT Connection, 1/4 in Maximum Deck Thickness, Deck Mounting, Quarter-Turn Eterna Compression, 12-5/8 in W x 3-5/16 in H Dimensions, Brass, Polished Chrome, Domestic
Center Distance:
8 in
Country Of Origin:
US
Mounting Type:
Deck
Connection Size:
1/2 in
Connection Type:
MNPT
Dimensions:
12-5/8 in W x 3-5/16 in H
Domestic/Import:
Domestic
Finish/Color:
Polished Chrome
Flow Rate:
8.78 gpm
Handle Type:
Lever
Material:
Brass
Maximum Deck Thickness:
1/4 in
Spout Type:
Tubular
Valve/Cartridge Type:
Quarter-Turn Eterna Compression
- Swivel outlet accepts T and S swing nozzles
- Less nozzles
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- Lever handle with color coded index
- Tailpiece and nut to provide 1/4 in MNPT
- Polished chrome escutcheon
- 40 to 140 deg F rated operating
- 8.78 gpm at 60 psi
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Low lead content (0.25% max)
- Polished chrome metal handle and escutcheon
Product Details
T & S Workboard Mixing Manual Faucet, 8.78 gpm Flow Rate, 8 in Center Distance, Tubular Spout, Lever Handle, 1/2 in Connection, MNPT Connection, 1/4 in Maximum Deck Thickness, Deck Mounting, Quarter-Turn Eterna Compression, 12-5/8 in W x 3-5/16 in H Dimensions, Brass, Polished Chrome, Domestic
Attributes
Center Distance:Â 8 in
Country Of Origin:Â US
Mounting Type:Â Deck
Connection Size:Â 1/2 in
Connection Type:Â MNPT
Dimensions:Â 12-5/8 in W x 3-5/16 in H
Domestic/Import:Â Domestic
Finish/Color:Â Polished Chrome
Flow Rate:Â 8.78 gpm
Handle Type:Â Lever
Material:Â Brass
Maximum Deck Thickness:Â 1/4 in
Spout Type:Â Tubular
Valve/Cartridge Type:Â Quarter-Turn Eterna Compression
Features
- Swivel outlet accepts T and S swing nozzles
- Less nozzles
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- Lever handle with color coded index
- Tailpiece and nut to provide 1/4 in MNPT
- Polished chrome escutcheon
- 40 to 140 deg F rated operating
- 8.78 gpm at 60 psi
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Low lead content (0.25% max)
- Polished chrome metal handle and escutcheon
