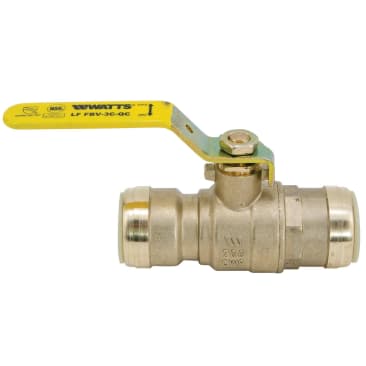

WATTS 0555269 LFFBV-3C-QC 1/2 QUICK CONNECT BALL VALVE

MFR Part #: 0555269
SKU #: 1107552
Brand: WATTS®
UPC: 098268450316
WATTS® 0555269 LFFBV-3C-QC 2-Piece Ball Valve, 1/2 in Nominal, Copper Silicon Alloy Body, Full Port, Import
Limited
Adjustable Packing Gland
Commercial and Residential Applications
ASSE 1061|ANSI/NSF 61-G|IAPMO Listed|UPC Certified

WATTS®, 0555269, Ball Valve, 2-Piece, Series: LFFBV-3C-QC, 1/2 in Nominal, 200 psi Pressure, -40 to 180 deg F, Full Port, Media: Water, 1/2 in Orifice, 3-13/16 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Copper Silicon Alloy Body, Brass Stem and Virgin PTFE Seat Trim, Import

Series LFFBV-3C-QC 2-Piece, Full Port, Lead Free cast copper silicon alloy Ball Valves with Quick-Connect Technology are used in residential and commercial potable water applications. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, adjustable packing gland, stem packing nut, chrome-plated brass ball adapter and steel handles. Series LFFBV-3C-QC comes with integral quick-connect inlet and outlet connections for fast installation on copper, CPVC, PEX and PB pipe.

Product Details

WATTS®, 0555269, Ball Valve, 2-Piece, Series: LFFBV-3C-QC, 1/2 in Nominal, 200 psi Pressure, -40 to 180 deg F, Full Port, Media: Water, 1/2 in Orifice, 3-13/16 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Copper Silicon Alloy Body, Brass Stem and Virgin PTFE Seat Trim, Import

Series LFFBV-3C-QC 2-Piece, Full Port, Lead Free cast copper silicon alloy Ball Valves with Quick-Connect Technology are used in residential and commercial potable water applications. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, adjustable packing gland, stem packing nut, chrome-plated brass ball adapter and steel handles. Series LFFBV-3C-QC comes with integral quick-connect inlet and outlet connections for fast installation on copper, CPVC, PEX and PB pipe.

Attributes

Country Of Origin: Mexico
Inlet to Outlet Length: 3-13/16 in
Nominal Size: 1/2 in
Pressure Rating: 200 psi
Ball Material: Chrome Plated Brass
Body Material: Copper Silicon Alloy
Domestic/Import: Import
Media: Water
Orifice Size: 1/2 in
Port Type: Full
Series: LFFBV-3C-QC
Softgoods Material: PTFE
Temperature Rating: -40 to 180 deg F
Top to Inlet Center: 1-13/16 in
Trim Material: Brass Stem and Virgin PTFE Seat
Type: 2-Piece

Features

  • Forged brass body construction with end adapter
  • Comes with pipe stiffeners
  • No thread sealants, solders or glues needed
  • Bottom loaded blow-out proof stem
  • It can be removed and reused without the use of tools
  • Zinc plated carbon steel handle nut
  • Fluorocarbon elastomer FKM O-Ring
  • Acetal O-Ring guide and collet retainer
  • PTFE stem packing seal/thrust washer
  • Chrome plated brass ball
  • Can be used with copper, CPVC, PEX and PB pipe
  • Quick-Connect inlet and outlet connections
