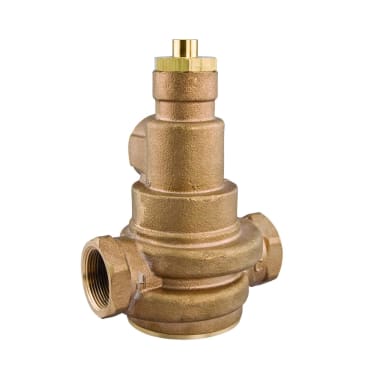

WATTS 0559124 LFN170-M3 3/4 90-180F MIXING VALVE
Product Details
Attributes
Features
Resources
WATTS®, 0559124, Master Tempering Valve, Series: LFN170M3, 3/4 in Nominal, NPT End Style, 125 psi Pressure, 5 to 200 deg F, 3 gpm Flow Rate, Media: Water, Brass Body, Domestic
This 3/4 inch lead free master mixing valve is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. It is designed for installation at the hot water source. It features a lead free brass body construction, a copper paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single-seat design ensures tight shut off in the event of cold water supply loss. Listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. The temperature range is 90 to 180 degrees F (32 to 82 degrees C) and the maximum pressure is 125 psi.
- Dirt and lime resistant poppet and seat design
- Vandal-resistant, locking mechanism to secure temperature setting
- LFN170-M3 uses paraffin-based thermostat to sense and adjust outlet temperature
- 45 Gal per minute capacity at 45 psiD
Product Details
WATTS®, 0559124, Master Tempering Valve, Series: LFN170M3, 3/4 in Nominal, NPT End Style, 125 psi Pressure, 5 to 200 deg F, 3 gpm Flow Rate, Media: Water, Brass Body, Domestic
This 3/4 inch lead free master mixing valve is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. It is designed for installation at the hot water source. It features a lead free brass body construction, a copper paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single-seat design ensures tight shut off in the event of cold water supply loss. Listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. The temperature range is 90 to 180 degrees F (32 to 82 degrees C) and the maximum pressure is 125 psi.
Attributes
Features
- Dirt and lime resistant poppet and seat design
- Vandal-resistant, locking mechanism to secure temperature setting
- LFN170-M3 uses paraffin-based thermostat to sense and adjust outlet temperature
- 45 Gal per minute capacity at 45 psiD
